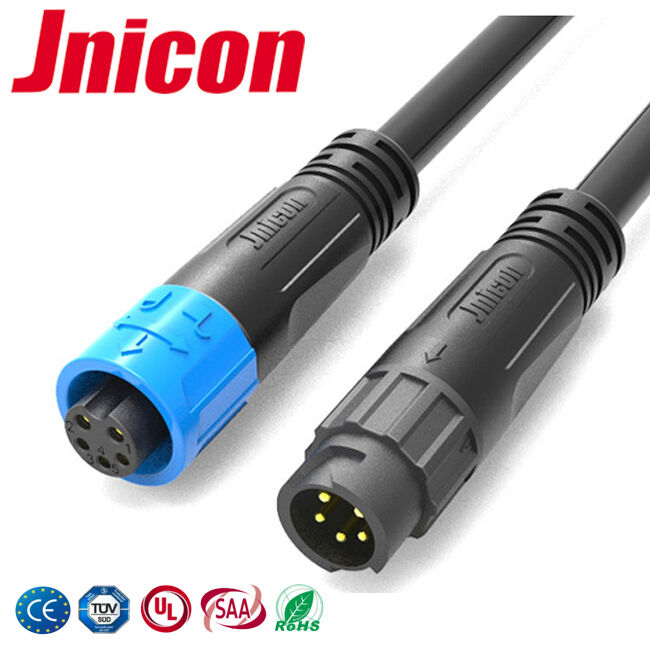

M12 IP67 Waterproof Outdoor Wire Connectors Quick Lock Molded Power Connector

Produktdetails:

Herkunftsort:	Shenzhen China
Markenname:	Jnicon
Zertifizierung:	UL , CQC , CE ,ROHS
Modellnummer:	M12

Zahlung und Versand AGB:

Min Bestellmenge:	100 (10 Probenpaare)
Preis:	negotiable
Verpackung Informationen:	1. Plastiktüte; 2. Karton; 3. Gemäß den Anforderungen des Kunden
Lieferzeit:	3 ~ 5 Tage
Zahlungsbedingungen:	L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal
Versorgungsmaterial-Fähigkeit:	10000 / Tag

Kontakt

Ausführliche Produkt-Beschreibung

Produktname:	M12 5-poliger Stecker	Aktuelle Bewertung:	10A + 2A
Nennspannung:	125V + 60V	IP-Ebene:	IP67
Material:	PA66,UL94-V0	Typ:	Montagefeld-Push-Lock-Steckverbinder
Hervorheben:	M12 waterproof wire connectors , quick lock power connector , IP67 outdoor LED connectors

5 Pole Waterproof Data Connector Quick - Lock High Durability Corrosion Resistance

Description of Waterproof Data Connector

1. 5 ( 2+3 )Pin connector , 2pin power supply , 3pin data supply .

2. Male and female electrical connector with cable .

3. Electrical wall washing waterproof data connector .

4. Optinal color for different environment .

The Reason for Choosing Our Product

1. We can provide the M12 5pin waterproof data connectors with great quality and best price
Free sample can be provide for testing first , then decide if make an order
We accept custom - made , whether it is connector , cable , carton or other special requirement .
Approved by UL , CE , CQC and other units validation test .

Specification of M12 5Pin Waterproof Connector

Product name	M12 5Pin connector
Current	10A+2A
Voltage	125V+60V
Contact diameter X number	φ1.5 +φ1.0
Withstanding voltage	1000V
Protection level	IP67
Cable Specification	1.0+0.5mm2
Diameter range	MAXφ9.0mm
Operating temperature	-40℃ - 105℃
Connecting mode	Qick - locking
Insulating parts	High - performance engineering plastics
Material of copper needles	Copper alloy
Flame - resistant rating	UL94 - V0
Color	Blue black
Application	Wall washing lgiht / tube light
Warranty	5 Years
